第4章尚品甄选-订单

4.1 商品结算

4.1.1 需求说明

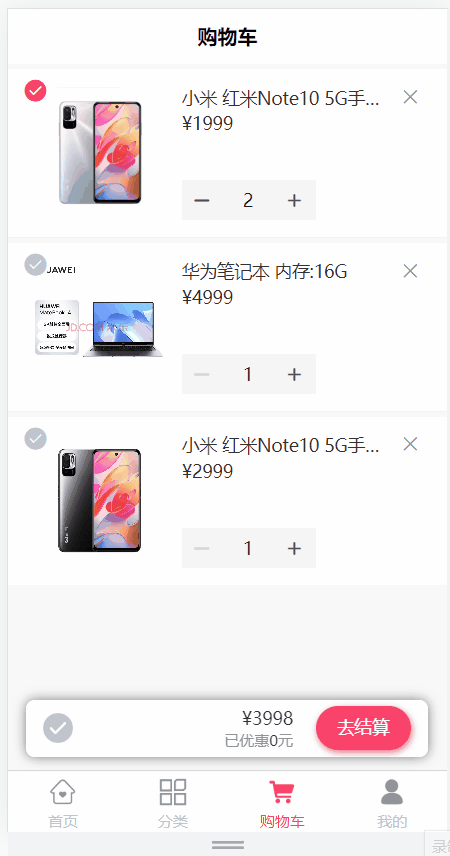

入口：购物车点击去结算按钮，进入结算页面(订单确认页面)，如图所示：

分析页面需要的数据：

1、用户地址信息列表管理（增删改查），结算页选中默认地址

2、购物车中选择的商品列表，及商品的总金额

查看接口文档：

用户地址信息接口地址及返回结果：

#用户地址列表
get /user/userAddress/list
返回结果：
{
    "msg": "操作成功",
    "code": 200,
    "data": [
        {
            "id": 60,
            "userId": 1,
            "name": "晴天",
            "phone": "15023656352",
            "tagName": "家",
            "provinceCode": "110000",
            "cityCode": "110100",
            "districtCode": "110101",
            "address": "东直门1号",
            "fullAddress": "北京市北京市东城区东直门1号",
            "isDefault": 1
        },
        ...
    ]
}

#添加用户地址
post /user/userAddress
参数：
{
    "id": null,
    "name": "cs",
    "phone": "15090909090",
    "provinceCode": "110000",
    "cityCode": "110100",
    "districtCode": "110102",
    "address": "111",
    "tagName": "家",
    "isDefault": 0
}
返回结果：
{
    "msg": "操作成功",
    "code": 200
}

#修改用户地址
put /user/userAddress
参数：
{
    "id": 60
    "name": "cs",
    "phone": "15090909090",
    "provinceCode": "110000",
    "cityCode": "110100",
    "districtCode": "110102",
    "address": "111",
    "tagName": "家",
    "isDefault": 0
}
返回结果：
{
    "msg": "操作成功",
    "code": 200
}

#删除用户地址
delete /user/userAddress/{id}
返回结果：
{
    "msg": "操作成功",
    "code": 200
}

结算接口地址及返回结果：

get /order/orderInfo/trade
返回结果：
{
    "msg": "操作成功",
    "code": 200,
    "data": {
        "totalAmount": 8998.00,
        "orderItemList": [
            {
                "orderId": null,
                "skuId": 9,
                "skuName": "华为笔记本 32G",
                "thumbImg": "http://139.198.127.41:9000/spzx/20230525/c8f2eae0d36b6270.jpg.avif",
                "skuPrice": 5999.00,
                "skuNum": 1
            },
            ...
        ],
        "tradeNo": "1d76f36b59414e869e843fc742e21469"
    }
}

4.1.2 地址管理接口

操作模块：spzx-user

1、UserAddressController

package com.spzx.user.controller;

@RestController
@RequestMapping("/userAddress")
public class UserAddressController extends BaseController
{
    @Autowired
    private IUserAddressService userAddressService;

    /**
     * 查询用户地址列表
     */
    @Operation(summary = "查询用户地址列表")
    @RequiresLogin
    @GetMapping("/list")
    public AjaxResult list()
    {
        List<UserAddress> list = userAddressService.selectUserAddressList();
        return success(list);
    }

    /**
     * 新增用户地址
     */
    @Operation(summary = "新增用户地址")
    @RequiresLogin
    @PostMapping
    public AjaxResult add(@RequestBody UserAddress userAddress)
    {
        return toAjax(userAddressService.insertUserAddress(userAddress));
    }

    /**
     * 修改用户地址
     */
    @Operation(summary = "修改用户地址")
    @RequiresLogin
    @PutMapping
    public AjaxResult edit(@RequestBody UserAddress userAddress)
    {
        return toAjax(userAddressService.updateUserAddress(userAddress));
    }

    /**
     * 删除用户地址
     */
    @Operation(summary = "删除用户地址")
    @RequiresLogin
    @DeleteMapping("/{id}")
    public AjaxResult remove(@PathVariable Long id)
    {
        return toAjax(userAddressService.removeById(id));
    }
}

2、IUserAddressService

package com.spzx.user.service;

public interface IUserAddressService extends IService<UserAddress>
{

    /**
     * 查询用户地址列表
     * @return 用户地址集合
     */
    public List<UserAddress> selectUserAddressList();

    /**
     * 新增用户地址
     * @param userAddress 用户地址
     * @return 结果
     */
    public int insertUserAddress(UserAddress userAddress);

    /**
     * 修改用户地址
     * @param userAddress 用户地址
     * @return 结果
     */
    public int updateUserAddress(UserAddress userAddress);

}

3、UserAddressServiceImpl

package com.spzx.user.service.impl;

@Service
public class UserAddressServiceImpl extends ServiceImpl<UserAddressMapper, UserAddress> implements IUserAddressService
{
    @Autowired
    private UserAddressMapper userAddressMapper;

    @Autowired
    private IRegionService regionService;

    /**
     * 查询用户地址列表
     * @return 用户地址
     */
    @Override
    public List<UserAddress> selectUserAddressList()
    {
        // 获取当前登录用户的id
        Long userId = SecurityContextHolder.getUserId();
        return userAddressMapper.selectList(new LambdaQueryWrapper<UserAddress>().eq(UserAddress::getUserId, userId));
    }

    /**
     * 新增用户地址
     * @param userAddress 用户地址
     * @return 结果
     */
    @Override
    public int insertUserAddress(UserAddress userAddress)
    {
        userAddress.setUserId(SecurityContextHolder.getUserId());
        String provinceName = regionService.getNameByCode(userAddress.getProvinceCode());
        String cityName = regionService.getNameByCode(userAddress.getCityCode());
        String districtName = regionService.getNameByCode(userAddress.getDistrictCode());
        String fullAddress = provinceName + cityName + districtName + userAddress.getAddress();
        userAddress.setFullAddress(fullAddress);
        userAddress.setCreateTime(DateUtils.getNowDate());

        //如果是默认地址，其他地址更新为非默认地址
        if(userAddress.getIsDefault().intValue() == 1) {
            UserAddress updateUserAddress = new UserAddress();
            updateUserAddress.setIsDefault(0L);
            userAddressMapper.update(updateUserAddress, new LambdaQueryWrapper<UserAddress>().eq(UserAddress::getUserId, userAddress.getUserId()));
        }
        return userAddressMapper.insert(userAddress);
    }

    /**
     * 修改用户地址
     * @param userAddress 用户地址
     * @return 结果
     */
    @Override
    public int updateUserAddress(UserAddress userAddress)
    {
        String provinceName = regionService.getNameByCode(userAddress.getProvinceCode());
        String cityName = regionService.getNameByCode(userAddress.getCityCode());
        String districtName = regionService.getNameByCode(userAddress.getDistrictCode());
        String fullAddress = provinceName + cityName + districtName + userAddress.getAddress();
        userAddress.setFullAddress(fullAddress);
        userAddress.setUpdateTime(DateUtils.getNowDate());
        //如果是默认地址，其他地址更新为非默认地址
        if(userAddress.getIsDefault().intValue() == 1) {
            UserAddress updateUserAddress = new UserAddress();
            updateUserAddress.setIsDefault(0L);
            userAddressMapper.update(updateUserAddress, new LambdaQueryWrapper<UserAddress>().eq(UserAddress::getUserId, userAddress.getUserId()));
        }
        return userAddressMapper.updateById(userAddress);
    }

}

4、IRegionService

/**
 * 根据code获取地区名称
 * @param code
 * @return
 */
String getNameByCode(String code);

5、RegionServiceImpl

@Override
public String getNameByCode(String code) {
    if (StringUtils.isEmpty(code)) {
        return "";
    }
    Region region = regionMapper.selectOne(new LambdaQueryWrapper<Region>().eq(Region::getCode,code).select(Region::getName));
    if(null != region) {
        return region.getName();
    }
    return "";
}

4.1.3 获取选中购物项数据接口

1、远程调用接口开发

操作模块：spzx-cart

（1）CartController

@Operation(summary="查询用户购物车列表中选中商品列表")
@InnerAuth
@GetMapping("/getCartCheckedList/{userId}")
public R<List<CartInfo>> getCartCheckedList(@Parameter(name = "userId", description = "会员id", required = true) @PathVariable Long userId){
return R.ok(cartService.getCartCheckedList(userId));
}

（2）ICartService

List<CartInfo> getCartCheckedList(Long userId);

（3）CartServiceImpl

@Override
public List<CartInfo> getCartCheckedList(Long userId) {
    List<CartInfo> cartInfoList = new ArrayList<>();

    String cartKey = this.getCartKey(userId);
    List<CartInfo> cartCachInfoList = redisTemplate.opsForHash().values(cartKey);
    if (!CollectionUtils.isEmpty(cartCachInfoList)) {
        for (CartInfo cartInfo : cartCachInfoList) {
            // 获取选中的商品！
            if (cartInfo.getIsChecked().intValue() == 1) {
                cartInfoList.add(cartInfo);
            }
        }
    }
    return cartInfoList;
}

2、openFeign接口定义

操作模块：spzx-api-cart

（1）RemoteCartService

package com.spzx.cart.api;

@FeignClient(value = ServiceNameConstants.CART_SERVICE, fallbackFactory = RemoteCartFallbackFactory.class)
public interface RemoteCartService
{

    @GetMapping("/getCartCheckedList/{userId}")
    public R<List<CartInfo>> getCartCheckedList(@PathVariable("userId") Long userId, @RequestHeader(SecurityConstants.FROM_SOURCE)String source);

}

（2）ServiceNameConstants

/**
 * 购物车服务的serviceid
 */
public static final String CART_SERVICE = "spzx-cart";

（3）RemoteCartFallbackFactory

package com.spzx.user.api.factory;

/**
 * 购物车降级处理
 * @author atguigu
 */
@Component
public class RemoteCartFallbackFactory implements FallbackFactory<RemoteCartService>
{
    private static final Logger log = LoggerFactory.getLogger(RemoteCartFallbackFactory.class);

    @Override
    public RemoteCartService create(Throwable throwable)
    {
        log.error("购物车服务调用失败:{}", throwable.getMessage());
        return new RemoteCartService()
        {

            @Override
            public R<List<CartInfo>> getCartCheckedList(Long userId, String source) {
                return R.fail("获取用户购物车选中数据失败:" + throwable.getMessage());
            }

        };
    }
}

（4）加载配置类

resources/META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports

com.spzx.cart.api.factory.RemoteCartFallbackFactory

4.1.4 后端业务接口

操作模块：spzx-order

1、TradeVo

package com.spzx.order.domain;

@Data
@Schema(description = "结算实体类")
public class TradeVo {

    @Schema(description = "结算总金额")
    private BigDecimal totalAmount;

    @Schema(description = "结算商品列表")
    private List<OrderItem> orderItemList;

    @Schema(description = "交易号")
    private String tradeNo;

}

2、OrderInfoController

@Operation(summary = "订单结算")
@RequiresLogin
@GetMapping("/trade")
public AjaxResult orderTradeData() {
    return success(orderInfoService.orderTradeData());
}

3、IOrderInfoService

TradeVo orderTradeData();

4、OrderInfoServiceImpl

@Autowired
private RemoteCartService remoteCartService;

@Autowired
private RedisTemplate redisTemplate;

@Override
public TradeVo orderTradeData() {
    // 获取当前登录用户的id
    Long userId = SecurityContextHolder.getUserId();

    R<List<CartInfo>> cartInfoListResult = remoteCartService.getCartCheckedList(userId, SecurityConstants.INNER);
    if (R.FAIL == cartInfoListResult.getCode()) {
        throw new ServiceException(cartInfoListResult.getMsg());
    }
    List<CartInfo> cartInfoList = cartInfoListResult.getData();
    if (CollectionUtils.isEmpty(cartInfoList)) {
        throw new ServiceException("购物车无选中商品");
    }

    //将集合泛型从购物车改为订单明细
    List<OrderItem> orderItemList = null;
    BigDecimal totalAmount = new BigDecimal(0);
    if (!CollectionUtils.isEmpty(cartInfoList)) {
        orderItemList = cartInfoList.stream().map(cartInfo -> {
            OrderItem orderItem = new OrderItem();
            BeanUtils.copyProperties(cartInfo, orderItem);
            orderItem.setSkuPrice(cartInfo.getSkuPrice());
            return orderItem;
        }).collect(Collectors.toList());

        //订单总金额
        for(OrderItem orderItem : orderItemList) {
            totalAmount = totalAmount.add(orderItem.getSkuPrice().multiply(new BigDecimal(orderItem.getSkuNum())));
        }
    }

    //渲染订单确认页面-生成用户流水号
    String tradeNo = this.generateTradeNo(userId);

    TradeVo tradeVo = new TradeVo();
    tradeVo.setTotalAmount(totalAmount);
    tradeVo.setOrderItemList(orderItemList);
    tradeVo.setTradeNo(tradeNo);
    return tradeVo;
}

/**
 * 渲染订单确认页面-生成用户流水号
 * @param userId
 * @return
 */
private String generateTradeNo(Long userId) {
    //1.构建流水号Key
    String userTradeKey = "user:tradeNo:" + userId;
    //2.构建流水号value
    String tradeNo = UUID.randomUUID().toString().replaceAll("-", "");
    //3.将流水号存入Redis 暂存5分钟
    redisTemplate.opsForValue().set(userTradeKey, tradeNo, 5, TimeUnit.MINUTES);
    return tradeNo;
}

4.2 商品下单

4.2.1 需求说明

需求说明：用户在结算页面点击提交订单按钮，那么此时就需要保存订单信息(order_info)、订单项信息(order_item)及记录订单日志(order_log)，下单成功重定向到订单支付页面

查看接口文档：

下单接口地址及返回结果：

post /order/orderInfo/submitOrder
参数：
{
    "orderItemList": [
        {
            "skuId": 6,
            "skuName": "小米 红米Note10 5G手机 颜色:黑色 内存:18G",
            "thumbImg": "http://139.198.127.41:9000/spzx/20230525/665832167-1_u_1.jpg",
            "skuPrice": 2999,
            "skuNum": 1
        },
        ...
    ],
    "userAddressId": 2,
    "feightFee": 0,
    "remark": "赶快发货",
    "tradNo": "4a20bfd854c6e86e7488"
}
返回结果(订单id)：
{
    "code": 200,
    "message": "操作成功",
    "data": 1
}

4.2.2 创建order_log表代码

操作spzx-order模块

OrderLog

package com.spzx.order.domain;

import io.swagger.v3.oas.annotations.media.Schema;
import lombok.Data;
import com.spzx.common.core.annotation.Excel;
import com.spzx.common.core.web.domain.BaseEntity;

/**
 * 订单操作日志记录对象 order_log
 */
@Data
@Schema(description = "订单操作日志记录")
public class OrderLog extends BaseEntity
{
    private static final long serialVersionUID = 1L;

    /** 订单id */
    @Excel(name = "订单id")
    @Schema(description = "订单id")
    private Long orderId;

    /** 操作人：用户；系统；后台管理员 */
    @Excel(name = "操作人：用户；系统；后台管理员")
    @Schema(description = "操作人：用户；系统；后台管理员")
    private String operateUser;

    /** 订单状态 */
    @Excel(name = "订单状态")
    @Schema(description = "订单状态")
    private Long processStatus;

    /** 备注 */
    @Excel(name = "备注")
    @Schema(description = "备注")
    private String note;

}

OrderLogMapper

package com.spzx.order.mapper;

public interface OrderLogMapper extends BaseMapper<OrderLog>
{

}

4.2.3 批量获取商品价格接口

获取最新商品sku价格与购物车价格比较，校验价格是否变化，价格变化就更新购物车价格

这个接口之前已经开发过了，这里直接使用。

4.2.4 更新购物车最新价格

操作模块：spzx-cart

1、远程调用接口开发

（1）CartController

@Operation(summary="更新用户购物车列表价格")
@InnerAuth
@GetMapping("/updateCartPrice/{userId}")
public R<Boolean> updateCartPrice(@PathVariable("userId") Long userId){
    return R.ok(cartService.updateCartPrice(userId));
}

（2）ICartService

Boolean updateCartPrice(Long userId);

（3）CartServiceImpl

@Override
public Boolean updateCartPrice(Long userId) {
    String cartKey = getCartKey(userId);
    BoundHashOperations<String, String, CartInfo> hashOperations = redisTemplate.boundHashOps(cartKey);
    List<CartInfo> cartCachInfoList = hashOperations.values();
    if (!CollectionUtils.isEmpty(cartCachInfoList)) {
        for (CartInfo cartInfo : cartCachInfoList) {
            if (cartInfo.getIsChecked().intValue() == 1) {
                SkuPrice skuPrice = remoteProductService.getSkuPrice(cartInfo.getSkuId(), SecurityConstants.INNER).getData();
                cartInfo.setCartPrice(skuPrice.getSalePrice());
                cartInfo.setSkuPrice(skuPrice.getSalePrice());
                hashOperations.put(cartInfo.getSkuId().toString(), cartInfo);
            }
        }
    }
    return true;
}

2、openFeign接口定义

操作模块：spzx-api-cart

（1）RemoteCartService

@GetMapping("/updateCartPrice/{userId}")
public R<Boolean> updateCartPrice(@PathVariable("userId") Long userId, @RequestHeader(SecurityConstants.FROM_SOURCE)String source);

（2）RemoteCartFallbackFactory

@Override
public R<Boolean> updateCartPrice(Long userId, String source) {
    return R.fail("更新购物车价格失败:" + throwable.getMessage());
}

4.2.5 删除购物车选中商品

下单成功后，删除购物车选中的商品

操作模块：spzx-cart

1、远程调用接口开发

（1）CartController

@Operation(summary="删除用户购物车列表中选中商品列表")
@InnerAuth
@GetMapping("/deleteCartCheckedList/{userId}")
public R<Boolean> deleteCartCheckedList(@PathVariable("userId") Long userId){
    return R.ok(cartService.deleteCartCheckedList(userId));
}

（2）ICartService

 Boolean deleteCartCheckedList(Long userId);

（3）CartServiceImpl

@Override
public Boolean deleteCartCheckedList(Long userId) {
    String cartKey = getCartKey(userId);
    BoundHashOperations<String, String, CartInfo> hashOperations = redisTemplate.boundHashOps(cartKey);
    List<CartInfo> cartCachInfoList = hashOperations.values();
    if (!CollectionUtils.isEmpty(cartCachInfoList)) {
        for (CartInfo cartInfo : cartCachInfoList) {
            // 获取选中的商品！
            if (cartInfo.getIsChecked().intValue() == 1) {
                hashOperations.delete(cartInfo.getSkuId().toString());
            }
        }
    }
    return true;
}

2、openFeign接口定义

操作模块：spzx-api-cart

（1）RemoteCartService

@GetMapping("/deleteCartCheckedList/{userId}")
public R<Boolean> deleteCartCheckedList(@PathVariable("userId") Long userId, @RequestHeader(SecurityConstants.FROM_SOURCE)String source);

（2）RemoteCartFallbackFactory

@Override
public R<Boolean> deleteCartCheckedList(Long userId, String source) {
    return R.fail("删除用户购物车选中数据失败:" + throwable.getMessage());
}

4.2.6 获取用户地址信息

1、远程调用接口

操作模块：spzx-user

（1）UserAddressController

@InnerAuth
@GetMapping(value = "/getUserAddress/{id}")
public R<UserAddress> getUserAddress(@PathVariable("id") Long id)
{
    return R.ok(userAddressService.getById(id));
}

（2）UserAddress

将spzx-user模块UserAddress实体类，移动到spzx-api-user模块

2、openFeign接口定义

操作模块：spzx-api-user

（1）RemoteUserAddressService

package com.spzx.user.api;

@FeignClient(contextId = "remoteUserAddressService" , value = ServiceNameConstants.USER_SERVICE, fallbackFactory = RemoteUserAddressFallbackFactory.class)
public interface RemoteUserAddressService {

    @GetMapping(value = "/userAddress/getUserAddress/{id}")
    public R<UserAddress> getUserAddress(@PathVariable("id") Long id, @RequestHeader(SecurityConstants.FROM_SOURCE) String source);
}

（2）RemoteUserAddressFallbackFactory

package com.spzx.user.api.factory;

/**
 * 服务降级处理
 */
@Component
public class RemoteUserAddressFallbackFactory implements FallbackFactory<RemoteUserAddressService>
{
    private static final Logger log = LoggerFactory.getLogger(RemoteUserAddressFallbackFactory.class);

    @Override
    public RemoteUserAddressService create(Throwable throwable)
    {
        log.error("用户服务调用失败:{}", throwable.getMessage());
        return new RemoteUserAddressService()
        {

            @Override
            public R<UserAddress> getUserAddress(Long id, String source) {
                return R.fail("获取用户地址失败:" + throwable.getMessage());
            }
        };
    }
}

（3）加载配置类

resources/META-INF.spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports

com.spzx.user.api.factory.RemoteUserAddressFallbackFactory

4.2.7 后端业务接口

操作模块：spzx-order

1、OrderForm

package com.spzx.order.domain;

@Data
public class OrderForm {

    @Schema(description = "用户流水号")
    private String tradeNo;

    //送货地址id
    @Schema(description = "送货地址id")
    private Long userAddressId;

    //运费
    @Schema(description = "运费")
    private BigDecimal feightFee;

    //备注
    @Schema(description = "备注")
    private String remark;

    @Schema(description = "结算商品列表")
    private List<OrderItem> orderItemList;
}

2、OrderInfoController

@Operation(summary = "用户提交订单")
@RequiresLogin
@PostMapping("/submitOrder")
public AjaxResult submitOrder(@RequestBody OrderForm orderForm) {
    return success(orderInfoService.submitOrder(orderForm));
}

3、IOrderInfoService

Long submitOrder(OrderForm orderForm);

4、OrderInfoServiceImpl

@Autowired
private RemoteProductService remoteProductService;

@Autowired
private RemoteUserAddressService remoteUserAddressService;

@Autowired
private OrderLogMapper orderLogMapper;

/**
 * 验证页面提交流水号是否有效
 *
 * @param userId
 * @param tradeNo
 * @return
 */
private Boolean checkTradeNo(String userId, String tradeNo) {
    String userTradeKey = "user:tradeNo:" + userId;
    String redisTradeNo = (String) redisTemplate.opsForValue().get(userTradeKey);
    return tradeNo.equals(redisTradeNo);
}

/**
 * 删除流水号
 * @param userId
 */
private void deleteTradeNo(String userId) {
    String userTradeKey = "user:tradeNo:" + userId;
    redisTemplate.delete(userTradeKey);
}

@Transactional(rollbackFor = Exception.class)
@Override
public Long submitOrder(OrderForm orderForm) {
    // 获取当前登录用户的id
    Long userId = SecurityContextHolder.getUserId();

    //1.验证用户是否通过浏览器回退进行重复提交订单
    //1.1 获取Redis中存放流水号 跟用户提交比较
    //Boolean flag = this.checkTradeNo(orderInfo.getUserId().toString(), tradeNo);
    //if (!flag) {
    //    throw new RuntimeException("请勿重复提交订单，请尝试重试");
    //}
    //1.2 验证通过，将Redis中存放流水号删除
    //this.deleteTradeNo(orderInfo.getUserId().toString());

    //1.3 采用Lua脚本保证判断删除流水号原子性 KEYS[1]:流水号Key    ARGV[1]：用户流水号
    String userTradeKey = "user:tradeNo:" + userId;
    String scriptText = "if redis.call(\"get\",KEYS[1]) == ARGV[1]\n" +
            "then\n" +
            "    return redis.call(\"del\",KEYS[1])\n" +
            "else\n" +
            "    return 0\n" +
            "end";
    DefaultRedisScript<Long> redisScript = new DefaultRedisScript<>();
    redisScript.setScriptText(scriptText);
    redisScript.setResultType(Long.class);
    Long flag = (Long) redisTemplate.execute(redisScript, Arrays.asList(userTradeKey), orderForm.getTradeNo());
    if (flag == 0) {
        throw new ServiceException("请勿重复提交订单，请尝试重试");
    }

    //2. 判断购物项
    List<OrderItem> orderItemList = orderForm.getOrderItemList();
    if (CollectionUtils.isEmpty(orderItemList)) {
        throw new ServiceException("请求不合法");
    }

    //3.订单校验
    //3.1.校验价格
    List<Long> skuIdList = orderItemList.stream().map(OrderItem::getSkuId).collect(Collectors.toList());

    R<List<SkuPrice>> skuPriceListResult = remoteProductService.getSkuPriceList(skuIdList, SecurityConstants.INNER);
    if (R.FAIL == skuPriceListResult.getCode()) {
        throw new ServiceException(skuPriceListResult.getMsg());
    }
    List<SkuPrice> skuPriceList = skuPriceListResult.getData();

    Map<Long, BigDecimal> skuIdToSalePriceMap = skuPriceList.stream().collect(Collectors.toMap(SkuPrice::getSkuId, SkuPrice::getSalePrice));

    String priceCheckResult = "";
    for (OrderItem orderItem : orderItemList) {
        if (orderItem.getSkuPrice().compareTo(skuIdToSalePriceMap.get(orderItem.getSkuId())) != 0) {
            priceCheckResult += orderItem.getSkuName() + "价格变化了; ";
        }
    }
    if(StringUtils.isNotEmpty(priceCheckResult)) {
        //更新购物车价格
        remoteCartService.updateCartPrice(userId, SecurityConstants.INNER);

        throw new ServiceException(priceCheckResult);
    }

    //3.2.校验库存并锁定库存
    //TODO ...

    Long orderId = null;
    try {
        //4 下单
        orderId = this.saveOrder(orderForm);
    } catch (Exception e) {
        e.printStackTrace();
        //抛出异常
        throw new ServiceException("下单失败");
    }

    //5 删除购物车选项
    remoteCartService.deleteCartCheckedList(userId, SecurityConstants.INNER);
    return orderId;
}

@Transactional(rollbackFor = Exception.class)
public Long saveOrder(OrderForm orderForm) {
    // 获取当前登录用户的id
    Long userId = SecurityContextHolder.getUserId();
    String userName = SecurityContextHolder.getUserName();

    OrderInfo orderInfo = new OrderInfo();
    orderInfo.setOrderNo(orderForm.getTradeNo());
    orderInfo.setUserId(userId);
    orderInfo.setNickName(userName);
	orderInfo.setRemark(orderForm.getRemark());
    UserAddress userAddress = remoteUserAddressService.getUserAddress(orderForm.getUserAddressId(), SecurityConstants.INNER).getData();
    orderInfo.setReceiverName(userAddress.getName());
    orderInfo.setReceiverPhone(userAddress.getPhone());
    orderInfo.setReceiverTagName(userAddress.getTagName());
    orderInfo.setReceiverProvince(userAddress.getProvinceCode());
    orderInfo.setReceiverCity(userAddress.getCityCode());
    orderInfo.setReceiverDistrict(userAddress.getDistrictCode());
    orderInfo.setReceiverAddress(userAddress.getFullAddress());

    List<OrderItem> orderItemList = orderForm.getOrderItemList();
    BigDecimal totalAmount = new BigDecimal(0);
    for (OrderItem orderItem : orderItemList) {
        totalAmount = totalAmount.add(orderItem.getSkuPrice().multiply(new BigDecimal(orderItem.getSkuNum())));
    }
    orderInfo.setTotalAmount(totalAmount);
    orderInfo.setCouponAmount(new BigDecimal(0));
    orderInfo.setOriginalTotalAmount(totalAmount);
    orderInfo.setFeightFee(orderForm.getFeightFee());
    //OrderInfo类的orderStatus属性的类型改为Integer
    orderInfo.setOrderStatus(0);
    orderInfoMapper.insert(orderInfo);

    //保存订单明细
    for (OrderItem orderItem : orderItemList) {
        orderItem.setOrderId(orderInfo.getId());
        orderItemMapper.insert(orderItem);
    }

    //记录日志
    OrderLog orderLog = new OrderLog();
    orderLog.setOrderId(orderInfo.getId());
    orderLog.setProcessStatus(0);
    orderLog.setNote("提交订单");
    orderLog.setOperateUser("用户");
    orderLogMapper.insert(orderLog);
    return orderInfo.getId();
}

4.3 检查与锁定库存

我们的商品不允许超卖，为了防止超卖，我们下单必须检查与锁定库存，下单失败或取消订单要解锁库存，支付成功扣减库存

4.3.1 远程调用接口

操作模块：spzx-product

1、ProductController

@InnerAuth
@Operation(summary = "检查与锁定库存")
@PostMapping("checkAndLock/{orderNo}")
public R<String> checkAndLock(@PathVariable String orderNo, @RequestBody List<SkuLockVo> skuLockVoList) {
    try {
        return R.ok(productService.checkAndLock(orderNo, skuLockVoList));
    } catch (ServiceException e) {
        e.printStackTrace();
        return R.ok(e.getMessage());
    } catch (Exception e) {
        e.printStackTrace();
        return R.ok("库存不足");
    }
}

2、SkuLockVo

操作模块：spzx-api-product

package com.spzx.product.api.domain;

@Data
public class SkuLockVo
{

    private Long skuId;

    private Integer skuNum;

    /** 是否有库存 **/
    private Boolean isHaveStock = false;

}

3、IProductService

String checkAndLock(String orderNo, List<SkuLockVo> skuLockVoList);

4、ProductServiceImpl

@Transactional(rollbackFor = {Exception.class})
@Override
public String checkAndLock(String orderNo, List<SkuLockVo> skuLockVoList) {
    String key = "sku:checkAndLock:" + orderNo;
    String dataKey = "sku:lock:data:" + orderNo;
    //防止重复请求
    boolean isExist = redisTemplate.opsForValue().setIfAbsent(key, orderNo, 1, TimeUnit.HOURS);
    if (!isExist) {
        //如果存在，则已执行过库存锁定
        if(redisTemplate.hasKey(dataKey)) {
            return "";
        } else {
            return "重复提交";
        }
    }

    // 遍历所有商品，验库存并锁库存，要具备原子性
    skuLockVoList.forEach(skuLockVo -> {
        // 验库存：查询，返回的是满足要求的库存列表
        SkuStock skuStock = skuStockMapper.check(skuLockVo.getSkuId(), skuLockVo.getSkuNum());
        // 如果没有一个商品满足要求，这里就验库存失败
        if (null == skuStock) {
            skuLockVo.setIsHaveStock(false);
        } else {
            skuLockVo.setIsHaveStock(true);
        }
    });

    // 只要有一个商品锁定失败，所有锁定成功的商品要解锁库存
    if (skuLockVoList.stream().anyMatch(skuLockVo -> !skuLockVo.getIsHaveStock())) {
        // 获取所有锁定成功的商品，遍历解锁库存
        StringBuffer result = new StringBuffer();
        //获取没有库存的对象列表
        List<SkuLockVo> noHaveStockSkuLockVoList = skuLockVoList.stream().filter(item -> !item.getIsHaveStock()).collect(Collectors.toList());
        for(SkuLockVo noHaveStockSkuLockVo : noHaveStockSkuLockVoList) {
            result.append("商品: " + noHaveStockSkuLockVo.getSkuId() + " 库存不足; ");
        }
        //锁定失败，解除
        redisTemplate.delete(key);
        // 响应锁定状态
        return result.toString();
    } else {
        //锁定库存
        skuLockVoList.forEach(skuLockVo -> {
            int row = skuStockMapper.lock(skuLockVo.getSkuId(), skuLockVo.getSkuNum());
            if(row == 0) {
                //解除去重
                this.redisTemplate.delete(key);
                throw new ServiceException("库存锁定失败");
            }
        });
    }

    // 如果所有商品都锁定成功的情况下，需要缓存锁定信息到redis。以方便将来解锁库存 或者 减库存
    this.redisTemplate.opsForValue().set(dataKey, skuLockVoList);
    return "";
}

5、SkuStockMapper

SkuStock check(@Param("skuId") Long skuId, @Param("num")Integer num);

Integer lock(@Param("skuId") Long skuId, @Param("num")Integer num);

6、SkuStockMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.spzx.product.mapper.SkuStockMapper">

    <resultMap type="SkuStock" id="SkuStockResult" autoMapping="true">
    </resultMap>

    <select id="check" resultMap="SkuStockResult">
        select * from sku_stock where sku_id = #{skuId} and available_num > #{num} for update
    </select>

    <update id="lock">
        update sku_stock
        set lock_num = lock_num + #{num}, available_num = available_num - #{num}
        where sku_id = #{skuId}
    </update>

</mapper>

select for update 这个语句的作用是在读取数据时给数据行加锁，以防止其他事务并发修改相同的数据行。

4.3.2 openFeign接口定义

RemoteProductService

@PostMapping("/product/checkAndLock/{orderNo}")
public R<String> checkAndLock(@PathVariable("orderNo") String orderNo, @RequestBody List<SkuLockVo> skuLockVoList, @RequestHeader(SecurityConstants.FROM_SOURCE) String source);

4.4 RabbitMQ使用

4.4.1 封装RabbitMQ

由于消息队列是公共模块，我们把mq的相关代码（生产者）封装到该模块，其他service微服务模块都可能使用，因此我们把他封装到一个单独的模块，需要使用mq的模块直接引用该模块即可

1、新建模块

在spzx-common模块下新建spzx-common-rabbit模块

2、pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <groupId>com.spzx</groupId>
        <artifactId>spzx-common</artifactId>
        <version>3.6.3</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>spzx-common-rabbit</artifactId>

    <description>
        spzx-common-rabbit服务
    </description>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!--rabbitmq消息队列-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-amqp</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.fastjson2</groupId>
            <artifactId>fastjson2</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!-- 缓存服务 -->
        <dependency>
            <groupId>com.spzx</groupId>
            <artifactId>spzx-common-redis</artifactId>
        </dependency>
    </dependencies>
</project>

3、RabbitService

package com.spzx.common.rabbit.service;

@Service
public class RabbitService {

    @Autowired
    private RabbitTemplate rabbitTemplate;

    /**
     * 发送消息
     * @param exchange   交换机
     * @param routingKey 路由键
     * @param message    消息
     */
    public boolean sendMessage(String exchange, String routingKey, Object message) {
        rabbitTemplate.convertAndSend(exchange, routingKey, message);
        return true;
    }

}

4、加载配置类

resources/META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports

com.spzx.common.rabbit.service.RabbitService

5、MqConst

提供常量类 MqConst

package com.spzx.common.rabbit.constant;

public class MqConst {
	/**
     * 测试
     */
    public static final String EXCHANGE_TEST = "spzx.test";
    public static final String ROUTING_TEST = "spzx.test";
    public static final String ROUTING_CONFIRM = "spzx.confirm";
    //队列
    public static final String QUEUE_TEST  = "spzx.test";
    public static final String QUEUE_CONFIRM  = "spzx.confirm";

    /**
     * 库存
     */
    public static final String EXCHANGE_PRODUCT = "spzx.product";
    public static final String ROUTING_UNLOCK = "spzx.unlock";
    public static final String ROUTING_MINUS = "spzx.minus";
    //队列
    public static final String QUEUE_UNLOCK  = "spzx.unlock";
    public static final String QUEUE_MINUS  = "spzx.minus";

    /**
     * 支付
     */
    public static final String EXCHANGE_PAYMENT_PAY = "spzx.payment";
    public static final String ROUTING_PAYMENT_PAY = "spzx.payment.pay";
    public static final String ROUTING_PAYMENT_CLOSE = "spzx.payment.close";;
    public static final String QUEUE_PAYMENT_PAY = "spzx.payment.pay";
    public static final String QUEUE_PAYMENT_CLOSE  = "queue.payment.close";

    /**
     * 取消订单延迟消息
     */
    public static final String EXCHANGE_CANCEL_ORDER = "spzx.cancel.order";
    public static final String ROUTING_CANCEL_ORDER = "spzx.cancel.order";
    public static final String QUEUE_CANCEL_ORDER = "spzx.cancel.order";
    public static final Integer CANCEL_ORDER_DELAY_TIME = 15 * 60;
}

4.4.2 RabbitMQ测试

我们在spzx-order模块测试mq消息

1、配置RabbitMQ

在nacos配置中心，spzx-order-dev.yml文件添加配置

spring:
  rabbitmq:
    host: 127.0.0.1
    port: 5672
    username: guest
    password: guest

说明：host改为实际的IP

2、引入spzx-common-rabbit模块

在spzx-order模块pom.xml文件添加依赖

<dependency>
    <groupId>com.spzx</groupId>
    <artifactId>spzx-common-rabbit</artifactId>
    <version>3.6.3</version>
</dependency>

3、MqController

发送消息

package com.spzx.order.controller;

@Tag(name = "Mq接口管理")
@RestController
@RequestMapping("/mq")
public class MqController extends BaseController
{
    @Autowired
    private RabbitService rabbitService;

    @Operation(summary = "发送消息")
    @GetMapping("/sendMessage")
    public AjaxResult sendMessage()
    {
        rabbitService.sendMessage(MqConst.EXCHANGE_TEST, MqConst.ROUTING_TEST, "hello");
        return success();
    }

}

4、TestReceiver

监听消息

package com.spzx.order.receiver;

@Slf4j
@Component
public class TestReceiver {
    /**
     * 监听消息
     * @param message
     */
    @SneakyThrows
    @RabbitListener(bindings = @QueueBinding(
            exchange = @Exchange(value = MqConst.EXCHANGE_TEST, durable = "true"),
            value = @Queue(value = MqConst.QUEUE_TEST, durable = "true"),
            key = MqConst.ROUTING_TEST
    ))
    public void test(String content, Message message) {
        //都可以
        log.info("接收消息：{}", content);
        //log.info("接收消息：{}", new String(message.getBody()));
    }
}

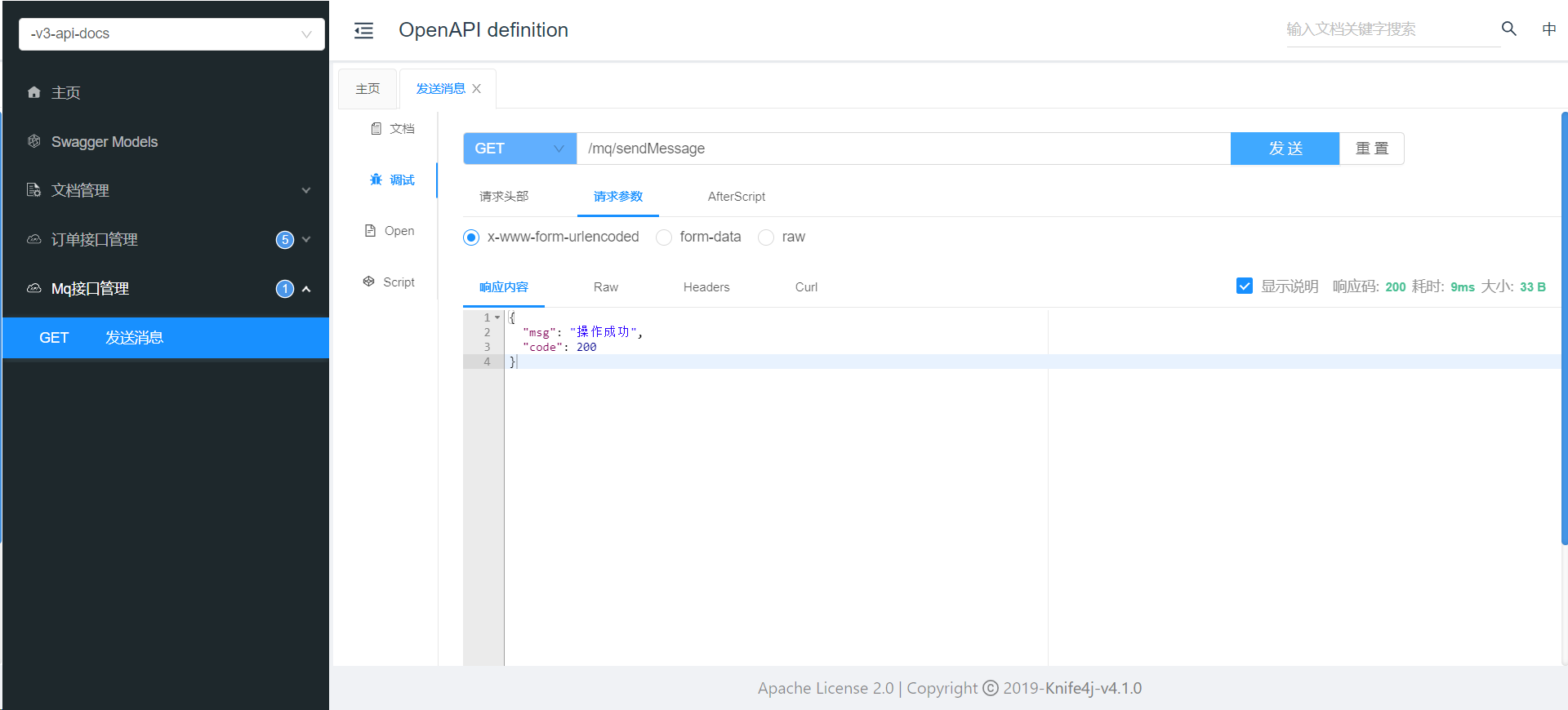

5、knife4j测试

发送消息

70902075792

监听消息：查看idea打印结果

4.4.3 消息可靠性配置

1、介绍

MQ消息的可靠性，一般需要三个方面一起保证：

生产者不丢数据
MQ服务器不丢数据
消费者不丢数据

保证消息不丢失有两种实现方式：

开启事务模式
消息确认模式（生产者，消费者）

**说明：**开启事务会大幅降低消息发送及接收效率，使用的相对较少，因此我们生产环境一般都采取消息确认模式，以下我们只是讲解消息确认模式

2、消息发送确认配置

消息发送确认可以保证生产者不丢数据

（1）封装发送端消息确认配置类

操作模块：spzx-common-rabbit

package com.spzx.common.rabbit.config;

import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.event.ApplicationReadyEvent;
import org.springframework.context.ApplicationListener;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Component;

@Slf4j
@Component
public class RabbitInitConfigApplicationListener implements ApplicationListener<ApplicationReadyEvent> {

    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Override
    public void onApplicationEvent(ApplicationReadyEvent event) {
        this.setupCallbacks();
    }

    private void setupCallbacks() {

        /**
         * 只确认消息是否正确到达 Exchange 中,成功与否都会回调
         *
         * @param correlation 相关数据  非消息本身业务数据
         * @param ack             应答结果
         * @param reason           如果发送消息到交换器失败，错误原因
         */
        this.rabbitTemplate.setConfirmCallback((correlationData, ack, reason) -> {
            if (ack) {
                //消息到交换器成功
                log.info("消息发送到Exchange成功：{}", correlationData);
            } else {
                //消息到交换器失败
                log.error("消息发送到Exchange失败：{}", reason);
            }
        });

        /**
         * 消息没有正确到达队列时触发回调，如果正确到达队列不执行
         */
        this.rabbitTemplate.setReturnsCallback(returned -> {
            log.error("Returned: " + returned.getMessage() + "\nreplyCode: " + returned.getReplyCode()
                    + "\nreplyText: " + returned.getReplyText() + "\nexchange/rk: "
                    + returned.getExchange() + "/" + returned.getRoutingKey());

        });
    }

}

（2）加载配置类

resources/META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports

com.spzx.common.rabbit.config.RabbitInitConfigApplicationListener

（3）修改配置

在nacos配置中心，修改spzx-order-dev.yml配置

spring:
  rabbitmq:
    host: 127.0.0.1
    port: 5672
    username: guest
    password: guest
    publisher-confirm-type: CORRELATED #发布消息成功到交换器后会触发回调方法
    publisher-returns: true # 未投递到Queue退回模式
    listener:
      simple:
        cknowledge-mode: manual #默认自动确认，手动确认manual
        prefetch: 1 # 消费者从队列获取最大的消息数量。不设置：轮询分发，设置1：能者多劳

（4）MqController

发送确认消息

@Operation(summary = "发送确认消息")
@GetMapping("/sendConfirmMessage")
public AjaxResult sendConfirmMessage(){
    rabbitService.sendMessage(MqConst.EXCHANGE_TEST, MqConst.ROUTING_CONFIRM, "hello, confirm");
    return success();
}

（5）TestReceiver

监听确认消息

import com.rabbitmq.client.Channel;

/**
 * 监听确认消息
 * @param message
 */
@SneakyThrows
@RabbitListener(bindings = @QueueBinding(
        exchange = @Exchange(value = MqConst.EXCHANGE_TEST, durable = "true"),
        value = @Queue(value = MqConst.QUEUE_CONFIRM, durable = "true"),
        key = MqConst.ROUTING_CONFIRM
))
public void confirm(String content, Message message, Channel channel) {
    log.info("接收确认消息：{}", content);

    // false 确认一个消息，true 批量确认
    channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
}

3、消息发送失败后设置重发机制

实现思路：借助redis来实现重发机制

操作模块：pzx-common-rabbit

（1）GuiguCorrelationData

自定义一个实体类来接收消息

package com.spzx.common.rabbit.entity;

import lombok.Data;
import org.springframework.amqp.rabbit.connection.CorrelationData;

@Data
public class GuiguCorrelationData extends CorrelationData {

    //消息体
    private Object message;
    //交换机
    private String exchange;
    //路由键
    private String routingKey;
    //重试次数
    private int retryCount = 0;
    //是否延迟消息
    private boolean isDelay = false;
    //延迟时长
    private int delayTime = 10;
}

（2）RabbitService

修改发送方法

@Autowired
private RedisTemplate redisTemplate;

/**
 *  发送消息
 * @param exchange 交换机
 * @param routingKey 路由键
 * @param message 消息
 */
public boolean sendMessage(String exchange, String routingKey, Object message) {
    //1.创建自定义相关消息对象-包含业务数据本身，交换器名称，路由键，队列类型，延迟时间,重试次数
    GuiguCorrelationData correlationData = new GuiguCorrelationData();
    String uuid = "mq:" + UUID.randomUUID().toString().replaceAll("-", "");
    correlationData.setId(uuid);
    correlationData.setMessage(message);
    correlationData.setExchange(exchange);
    correlationData.setRoutingKey(routingKey);

    //2.将相关消息存入Redis  Key：UUID  相关消息对象  10 分钟
    redisTemplate.opsForValue().set(uuid, JSON.toJSONString(correlationData), 10, TimeUnit.MINUTES);

    //3.将相关消息封装到发送消息方法中（注意：步骤2和3的代码顺序）
    rabbitTemplate.convertAndSend(exchange, routingKey, message, correlationData);

    return true;
}

（3）RabbitInitConfigApplicationListener

修改RabbitInitConfigApplicationListener类

package com.spzx.common.rabbit.config;

@Slf4j
@Component
public class RabbitInitConfigApplicationListener implements ApplicationListener<ApplicationReadyEvent> {

    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Autowired
    private RedisTemplate redisTemplate;

    @Override
    public void onApplicationEvent(ApplicationReadyEvent event) {
        this.setupCallbacks();
    }

    private void setupCallbacks() {

        /**
         * 只确认消息是否正确到达 Exchange 中,成功与否都会回调
         * @param correlation 相关数据  非消息本身业务数据
         * @param ack         应答结果
         * @param reason      如果发送消息到交换器失败，错误原因
         */
        this.rabbitTemplate.setConfirmCallback((correlationData, ack, reason) -> {
            if (ack) {
                //消息到交换器成功
                log.info("消息发送到Exchange成功：{}", correlationData);
            } else {
                //消息到交换器失败
                log.error("消息发送到Exchange失败：{}", reason);

                //执行消息重发
                this.retrySendMsg(correlationData);
            }
        });

        /**
         * 消息没有正确到达队列时触发回调，如果正确到达队列不执行
         */
        this.rabbitTemplate.setReturnsCallback(returned -> {
            log.error("Returned: " + returned.getMessage() + "\nreplyCode: " + returned.getReplyCode()
                    + "\nreplyText: " + returned.getReplyText() + "\nexchange/rk: "
                    + returned.getExchange() + "/" + returned.getRoutingKey());

            //当路由队列失败 也需要重发
            //1.构建相关数据对象
            String redisKey = returned.getMessage().getMessageProperties().getHeader("spring_returned_message_correlation");
            String correlationDataStr = (String) redisTemplate.opsForValue().get(redisKey);
            GuiguCorrelationData guiguCorrelationData = JSON.parseObject(correlationDataStr, GuiguCorrelationData.class);
            //2.调用消息重发方法
            this.retrySendMsg(guiguCorrelationData);
        });
    }

    /**
     * 消息重新发送
     * @param correlationData
     */
    private void retrySendMsg(CorrelationData correlationData) {
        //1.获取相关数据
        GuiguCorrelationData guiguCorrelationData = (GuiguCorrelationData) correlationData;

        //获取redis中存放重试次数
        //先重发，在写会到redis中次数
        int retryCount = guiguCorrelationData.getRetryCount();
        if (retryCount >= 3) {
            //超过最大重试次数
            log.error("生产者超过最大重试次数，将失败的消息存入数据库用人工处理；给管理员发送邮件；给管理员发送短信；");
            return;
        }

        //2.重发次数+1
        retryCount += 1;
        guiguCorrelationData.setRetryCount(retryCount);
        redisTemplate.opsForValue().set(guiguCorrelationData.getId(), JSON.toJSONString(guiguCorrelationData), 10, TimeUnit.MINUTES);

        //3.重发消息（注意：步骤2和3的代码顺序）
        rabbitTemplate.convertAndSend(guiguCorrelationData.getExchange(), guiguCorrelationData.getRoutingKey(), guiguCorrelationData.getMessage(), guiguCorrelationData);

        log.info("进行消息重发！");
    }

}

4.4.4 延迟消息

延迟消息：生产者发送消息时指定一个时间，消费者不会立刻收到消息，而是在指定时间后才收到消息。

延迟消息有两种实现方案：

1，基于死信队列

2，集成延迟插件

4.4.4.1 基于死信实现延迟消息

使用RabbitMQ来实现延迟消息必须先了解RabbitMQ的两个概念：消息的TTL和死信Exchange，通过这两者的组合来实现延迟队列

1、消息的TTL（Time To Live）

消息的TTL就是消息的存活时间。RabbitMQ可以对队列和消息分别设置TTL。对队列设置就是队列没有消费者连着的保留时间，也可以对每一个单独的消息做单独的设置。超过了这个时间，我们认为这个消息就死了，称之为死信。

如何设置TTL：

我们创建一个队列queue.temp，在Arguments 中添加x-message-ttl 为5000 （单位是毫秒），那所有压在这个队列的消息在5秒后会消失。

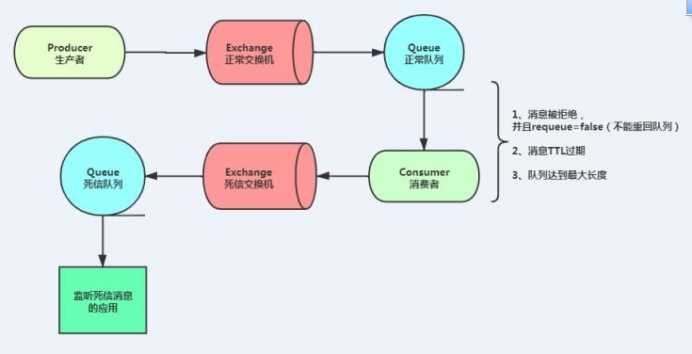

2、死信交换机 Dead Letter Exchanges

一个消息在满足如下条件下，会进死信路由，记住这里是路由而不是队列，一个路由可以对应很多队列。

（1）一个消息被Consumer拒收了，并且reject方法的参数里requeue是false。也就是说不会被再次放在队列里，被其他消费者使用。

（2）上面的消息的TTL到了，消息过期了。

（3）队列的长度限制满了。排在前面的消息会被丢弃或者扔到死信路由上。

Dead Letter Exchange其实就是一种普通的exchange，和创建其他exchange没有两样。只是在某一个设置Dead Letter Exchange的队列中有消息过期了，会自动触发消息的转发，发送到Dead Letter Exchange中去。

我们现在可以测试一下延迟队列。

（1）创建死信队列

（2）创建交换机

（3）建立交换器与队列之间的绑定

（4）创建队列

3、代码实现

操作模块：spzx-order

（1）DeadLetterMqConfig

package com.spzx.order.configure;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.HashMap;

@Configuration
public class DeadLetterMqConfig {
    // 声明一些变量
    public static final String exchange_dead = "exchange.dead";
    public static final String routing_dead_1 = "routing.dead.1";
    public static final String routing_dead_2 = "routing.dead.2";
    public static final String queue_dead_1 = "queue.dead.1";
    public static final String queue_dead_2 = "queue.dead.2";

    // 定义交换机
    @Bean
    public DirectExchange exchange() {
        return new DirectExchange(exchange_dead, true, false, null);
    }

    @Bean
    public Queue queue1() {
        // 设置如果队列一 出现问题，则通过参数转到exchange_dead，routing_dead_2 上！
        HashMap<String, Object> map = new HashMap<>();
        // 参数绑定 此处的key 固定值，不能随意写
        map.put("x-dead-letter-exchange", exchange_dead);
        map.put("x-dead-letter-routing-key", routing_dead_2);
        // 设置延迟时间
        map.put("x-message-ttl", 10 * 1000);
        // 队列名称，是否持久化，是否独享、排外的【true:只可以在本次连接中访问】，是否自动删除，队列的其他属性参数
        return new Queue(queue_dead_1, true, false, false, map);
    }

    @Bean
    public Binding binding() {
        // 将队列一 通过routing_dead_1 key 绑定到exchange_dead 交换机上
        return BindingBuilder.bind(queue1()).to(exchange()).with(routing_dead_1);
    }

    // 这个队列二就是一个普通队列
    @Bean
    public Queue queue2() {
        return new Queue(queue_dead_2, true, false, false, null);
    }

    // 设置队列二的绑定规则
    @Bean
    public Binding binding2() {
        // 将队列二通过routing_dead_2 key 绑定到exchange_dead交换机上！
        return BindingBuilder.bind(queue2()).to(exchange()).with(routing_dead_2);
    }
}

（2）MqController

/**
 * 消息发送延迟消息：基于死信实现
 */
@Operation(summary = "发送延迟消息：基于死信实现")
@GetMapping("/sendDeadLetterMsg")
public AjaxResult sendDeadLetterMsg() {
    rabbitService.sendMessage(DeadLetterMqConfig.exchange_dead, DeadLetterMqConfig.routing_dead_1, "我是延迟消息");
    return success();
}

（3）TestReceiver

接收消息

/**
 * 监听延迟消息
 * @param msg
 * @param message
 * @param channel
 */
@SneakyThrows
@RabbitListener(queues = {DeadLetterMqConfig.queue_dead_2})
public void getDeadLetterMsg(String msg, Message message, Channel channel) {
    log.info("死信消费者：{}", msg);
    channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
}

4.4.4.2 基于延迟插件实现延迟消息

Rabbitmq实现了一个插件x-delay-message来实现延时队列

1、插件安装

参考01-软件环境准备#6

2、代码实现

操作模块：spzx-order

（1）DelayedMqConfig

package com.spzx.order.configure;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.CustomExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.HashMap;
import java.util.Map;

@Configuration
public class DelayedMqConfig {

    public static final String exchange_delay = "exchange.delay";
    public static final String routing_delay = "routing.delay";
    public static final String queue_delay_1 = "queue.delay.1";

    @Bean
    public Queue delayQeue1() {
        // 第一个参数是创建的queue的名字，第二个参数是是否支持持久化
        return new Queue(queue_delay_1, true);
    }

    @Bean
    public CustomExchange delayExchange() {
        Map<String, Object> args = new HashMap<String, Object>();
        args.put("x-delayed-type", "direct");
        return new CustomExchange(exchange_delay, "x-delayed-message", true, false, args);
    }

    @Bean
    public Binding delayBbinding1() {
        return BindingBuilder.bind(delayQeue1()).to(delayExchange()).with(routing_delay).noargs();
    }
}

（2）MqController

@Operation(summary = "发送延迟消息：基于延迟插件")
@GetMapping("/sendDelayMsg")
public AjaxResult sendDelayMsg() {
    //调用工具方法发送延迟消息
    int delayTime = 10;
    rabbitService.sendDealyMessage(DelayedMqConfig.exchange_delay, DelayedMqConfig.routing_delay, "我是延迟消息", delayTime);
    return success();
}

（3）RabbitService

封装到工具类模块

操作模块：spzx-common-rabbit

/**
 * 发送延迟消息方法
 * @param exchange 交换机
 * @param routingKey 路由键
 * @param message 消息数据
 * @param delayTime 延迟时间，单位为：秒
 */
public boolean sendDealyMessage(String exchange, String routingKey, Object message, int delayTime) {
    //1.创建自定义相关消息对象-包含业务数据本身，交换器名称，路由键，队列类型，延迟时间,重试次数
    GuiguCorrelationData correlationData = new GuiguCorrelationData();
    String uuid = "mq:" + UUID.randomUUID().toString().replaceAll("-", "");
    correlationData.setId(uuid);
    correlationData.setMessage(message);
    correlationData.setExchange(exchange);
    correlationData.setRoutingKey(routingKey);
    correlationData.setDelay(true);
    correlationData.setDelayTime(delayTime);


    //2.将相关消息存入Redis  Key：UUID  相关消息对象  10 分钟
    redisTemplate.opsForValue().set(uuid, JSON.toJSONString(correlationData), 10, TimeUnit.MINUTES);

    //3.将相关消息封装到发送消息方法中
    rabbitTemplate.convertAndSend(exchange, routingKey, message,message1 -> {
        message1.getMessageProperties().setDelay(delayTime*1000);
        return message1;
    }, correlationData);

    return true;
}

3、消费者端幂等性处理

消费结果会发送多次，也被消费多次！

如何保证消息幂等性？

使用数据库方式
使用redis setnx 命令解决（推荐）

//监听延迟消息
@SneakyThrows
@RabbitListener(queues = {DeadLetterMqConfig.queue_dead_2})
public void getDeadLetterMsg(String msg, Message message, Channel channel) {
    //接收消息，消费者端判断是否需要做幂等性处理，如果业务保证幂等性，基于redis setnx保证
    String key = "mq:" + msg;
    Boolean flag = redisTemplate.opsForValue().setIfAbsent(key, "", 200, TimeUnit.SECONDS);
    if (!flag) {
        //说明该业务数据已经被执行
        channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
        return;
    }
    // 执行业务
    //  TODO
    channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
}

4.5 库存接口

4.5.1 解锁库存

下单失败，接口抛出异常，解锁库存我们必须保证执行成功，那么怎么办呢？前面讲解了Rabbit，它能保证数据的最终一致性，因此我们提供一个mq接口解锁库存。

操作模块：spzx-product

1、pom.xml

spzx-product模块添加依赖

<dependency>
    <groupId>com.spzx</groupId>
    <artifactId>spzx-common-rabbit</artifactId>
    <version>3.6.3</version>
</dependency>

2、spzx-product-dev.yml

添加配置

spring:
  rabbitmq:
    host: 127.0.0.1
    port: 5672
    username: guest
    password: guest
    publisher-confirm-type: CORRELATED
    publisher-returns: true
    listener:
      simple:
        cknowledge-mode: manual #默认自动确认，手动确认为manual
        prefetch: 1 # 消费者最大抓取消息数量。此属性不设置为轮询分发；设置1为公平分发(能者多劳)

3、ProductReceiver

package com.spzx.product.receiver;

import com.spzx.common.rabbit.constant.MqConst;
import com.spzx.product.service.IProductService;
import lombok.SneakyThrows;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import com.rabbitmq.client.Channel;

@Slf4j
@Component
public class ProductReceiver {

    @Autowired
    private IProductService productService;

    /**
     * 解锁库存
     * @param orderNo 订单号
     */
    @SneakyThrows
    @RabbitListener(bindings = @QueueBinding(
            exchange = @Exchange(value = MqConst.EXCHANGE_PRODUCT, durable = "true"),
            value = @Queue(value = MqConst.QUEUE_UNLOCK, durable = "true"),
            key = {MqConst.ROUTING_UNLOCK}
    ))
    public void unlock(String orderNo, Message message, Channel channel) {
        //业务处理
        if (StringUtils.isNotEmpty(orderNo)){
            log.info("[商品服务]监听解锁库存消息：{}", orderNo);
            //解锁库存
            productService.unlock(orderNo);
        }

        //手动应答
        channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
    }
}

4、IProductService

void unlock(String orderNo);

5、ProductServiceI

@Transactional(rollbackFor = {Exception.class})
@Override
public void unlock(String orderNo) {
    String key = "sku:unlock:" + orderNo;
    String dataKey = "sku:lock:data:" + orderNo;
    //业务去重，防止重复消费
    Boolean isExist = redisTemplate.opsForValue().setIfAbsent(key, orderNo, 1, TimeUnit.HOURS);
    if(!isExist) return;

    // 获取锁定库存的缓存信息
    List<SkuLockVo> skuLockVoList = (List<SkuLockVo>)this.redisTemplate.opsForValue().get(dataKey);
    if (CollectionUtils.isEmpty(skuLockVoList)){
        return ;
    }

    // 解锁库存
    skuLockVoList.forEach(skuLockVo -> {
        int row = skuStockMapper.unlock(skuLockVo.getSkuId(), skuLockVo.getSkuNum());
        if(row == 0) {
            //解除去重
            this.redisTemplate.delete(key);
            throw new ServiceException("解锁出库失败");
        }
    });

    // 解锁库存之后，删除锁定库存的缓存。以防止重复解锁库存
    this.redisTemplate.delete(dataKey);
}

6、SkuStockMapper

Integer unlock(@Param("skuId") Long skuId, @Param("num")Integer num);

7、SkuStockMapper.xml

<update id="unlock">
    update sku_stock
    set lock_num = lock_num - #{num}, available_num = available_num + #{num}
    where sku_id = #{skuId}
</update>

4.5.2 扣减库存

订单支付成功之后，通过发送mq消息，实现库存的真正去扣减

扣减库存跟解锁库存一样，提供mq接收端

1、ProductReceiver

/**
 * 扣减库存
 * @param orderNo  订单号
 */
@SneakyThrows
@RabbitListener(bindings = @QueueBinding(
        exchange = @Exchange(value = MqConst.EXCHANGE_PRODUCT, durable = "true"),
        value = @Queue(value = MqConst.QUEUE_MINUS, durable = "true"),
        key = {MqConst.ROUTING_MINUS}
))
public void minus(String orderNo, Channel channel, Message message) {
    //业务处理
    if (StringUtils.isNotEmpty(orderNo)){
        log.info("[商品服务]监听减库存消息：{}", orderNo);
        //扣减库存
        productService.minus(orderNo);
    }

    //手动应答
    channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
}

2、IProductService

void minus(String orderNo);

3、ProductServiceI

@Transactional(rollbackFor = {Exception.class})
@Override
public void minus(String orderNo) {
    String key = "sku:minus:" + orderNo;
    String dataKey = "sku:lock:data:" + orderNo;
    //业务去重，防止重复消费
    Boolean isExist = redisTemplate.opsForValue().setIfAbsent(key, orderNo, 1, TimeUnit.HOURS);
    if(!isExist) return;

    // 获取锁定库存的缓存信息
    List<SkuLockVo> skuLockVoList = (List<SkuLockVo>)this.redisTemplate.opsForValue().get(dataKey);
    if (CollectionUtils.isEmpty(skuLockVoList)){
        return ;
    }

    // 减库存
    skuLockVoList.forEach(skuLockVo -> {
        int row = skuStockMapper.minus(skuLockVo.getSkuId(), skuLockVo.getSkuNum());
        if(row == 0) {
            //解除去重
            this.redisTemplate.delete(key);
            throw new ServiceException("减出库失败");
        }
    });

    // 解锁库存之后，删除锁定库存的缓存。以防止重复解锁库存
    this.redisTemplate.delete(dataKey);
}

4、SkuStockMapper

Integer minus(@Param("skuId") Long skuId, @Param("num")Integer num);

5、SkuStockMapper.xml

<update id="minus">
    update sku_stock
    set lock_num = lock_num - #{num}, total_num = total_num - #{num}, sale_num = sale_num + #{num}
    where sku_id = #{skuId}
</update>

4.5.3 下单接口改造

操作OrderInfoServiceImpl

@Transactional(rollbackFor = Exception.class)
@Override
public Long submitOrder(OrderForm orderForm) {
    ...

    //3.2.校验库存并锁定库存
    List<SkuLockVo> skuLockVoList = orderItemList.stream().map(item -> {
        SkuLockVo skuLockVo = new SkuLockVo();
        skuLockVo.setSkuId(item.getSkuId());
        skuLockVo.setSkuNum(item.getSkuNum());
        return skuLockVo;
    }).collect(Collectors.toList());
    String checkAndLockResult = remoteProductService.checkAndLock(orderForm.getTradeNo(), skuLockVoList, SecurityConstants.INNER).getData();
    if(StringUtils.isNotEmpty(checkAndLockResult)) {
        throw new ServiceException(checkAndLockResult);
    }

    Long orderId = null;
    try {
        //4 下单
        ...
    } catch (Exception e) {
        e.printStackTrace();
        //4.1 下单失败，解锁库存
        rabbitService.sendMessage(MqConst.EXCHANGE_PRODUCT, MqConst.ROUTING_UNLOCK, orderForm.getTradeNo());
        //抛出异常
        throw new ServiceException("下单失败");
    }

    //5 删除购物车选项
    ...
    //7.发送延迟消息,取消订单 (15分钟未支付，消费者就会进行关闭订单->解锁库存。)
    rabbitService.sendDealyMessage(MqConst.EXCHANGE_CANCEL_ORDER,
                MqConst.ROUTING_CANCEL_ORDER,
                String.valueOf(orderId), MqConst.CANCEL_ORDER_DELAY_TIME);

    return orderId;
}

OrderReceiver:

/**
 * 延迟关闭订单消费者
 * @param orderId
 * @throws IOException
 */
@SneakyThrows
@RabbitListener(queues = MqConst.QUEUE_CANCEL_ORDER)
public void processCloseOrder(String orderId, Message message, Channel channel) throws IOException {
    //1.处理业务
    if (StringUtils.isNotEmpty(orderId)) {
        log.info("【订单微服务】关闭订单消息：{}", orderId);
        orderInfoService.processCloseOrder(Long.parseLong(orderId));
    }
    //2.手动应答
    channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
}

IOrderInfoService:

	/**
     * 关闭订单
     * @param orderId
     */
    void processCloseOrder(Long orderId);

OrderInfoServiceImpl

	@Transactional(rollbackFor = Exception.class)
    @Override
    public void processCloseOrder(Long orderId) {
        OrderInfo orderInfo = orderInfoMapper.selectById(orderId);
        if(null != orderInfo && orderInfo.getOrderStatus().intValue() == 0) { //  订单状态orderStatus=0 说明15分钟未支付。
            orderInfo.setOrderStatus(-1); //  -1 取消订单
            orderInfo.setCancelTime(new Date());
            orderInfo.setCancelReason("未支付自动取消");
            orderInfoMapper.updateById(orderInfo);

            //记录日志
            OrderLog orderLog = new OrderLog();
            orderLog.setOrderId(orderInfo.getId());
            orderLog.setProcessStatus(-1);
            orderLog.setNote("系统取消订单");
            orderLogMapper.insert(orderLog);

            //发送MQ消息通知商品系统解锁库存
            rabbitService.sendMessage(MqConst.EXCHANGE_PRODUCT, MqConst.ROUTING_UNLOCK, orderInfo.getOrderNo());
        }
    }

4.6 支付页

4.6.1 需求说明

提交订单成功，跳转到支付页面，根据订单id获取订单详细信息，展示订单支付信息

查看接口文档：

根据订单id获取订单信息接口地址及返回结果：

get /order/orderInfo/getOrderInfo/{orderId}
返回结果：
{
    "msg": "操作成功",
    "code": 200,
    "data": {
        "id": 2,
        "createTime": "2024-02-28 08:29:36",
        "userId": 1,
        "nickName": "13700032456",
        "orderNo": "f1866bad38bc4627958542d72a15ca9c",
        "couponId": null,
        "totalAmount": 9997.00,
        "couponAmount": 0.00,
        "originalTotalAmount": 9997.00,
        "feightFee": 0.00,
        "orderStatus": 0,
        "receiverName": "晴天",
        "receiverPhone": "15023656352",
        "receiverTagName": "家",
        "receiverProvince": "110000",
        "receiverCity": "110100",
        "receiverDistrict": "110101",
        "receiverAddress": "北京市北京市东城区东直门1号",
        "paymentTime": null,
        "deliveryTime": null,
        "receiveTime": null,
        "cancelTime": null,
        "cancelReason": null,
        "orderItemList": null
    }
}

4.6.2 后端业务接口

操作OrderInfoController

@Operation(summary = "获取订单信息")
@RequiresLogin
@GetMapping("getOrderInfo/{orderId}")
public AjaxResult getOrderInfo(@PathVariable Long orderId) {
    OrderInfo orderInfo = orderInfoService.getById(orderId);
    return success(orderInfo);
}

第4章 尚品甄选-订单

4.1 商品结算

4.1.1 需求说明

4.1.2 地址管理接口

1、UserAddressController

2、IUserAddressService

3、UserAddressServiceImpl

4、IRegionService

5、RegionServiceImpl

4.1.3 获取选中购物项数据接口

1、远程调用接口开发

2、openFeign接口定义

4.1.4 后端业务接口

1、TradeVo

2、OrderInfoController

3、IOrderInfoService

4、OrderInfoServiceImpl

4.2 商品下单

4.2.1 需求说明

4.2.2 创建order_log表代码

4.2.3 批量获取商品价格接口

4.2.4 更新购物车最新价格

1、远程调用接口开发

2、openFeign接口定义

4.2.5 删除购物车选中商品

1、远程调用接口开发

2、openFeign接口定义

4.2.6 获取用户地址信息

1、远程调用接口

2、openFeign接口定义

4.2.7 后端业务接口

4.3 检查与锁定库存

4.3.1 远程调用接口

4.3.2 openFeign接口定义

4.4 RabbitMQ使用

4.4.1 封装RabbitMQ

4.4.2 RabbitMQ测试

4.4.3 消息可靠性配置

1、介绍

2、消息发送确认配置

3、消息发送失败后设置重发机制

4.4.4 延迟消息

4.4.4.1 基于死信实现延迟消息

1、消息的TTL（Time To Live）

2、死信交换机 Dead Letter Exchanges

3、代码实现

4.4.4.2 基于延迟插件实现延迟消息

1、插件安装

2、代码实现

3、消费者端幂等性处理

4.5 库存接口

4.5.1 解锁库存

4.5.2 扣减库存

4.5.3 下单接口改造

4.6 支付页

4.6.1 需求说明

4.6.2 后端业务接口

评论

第4章尚品甄选-订单
